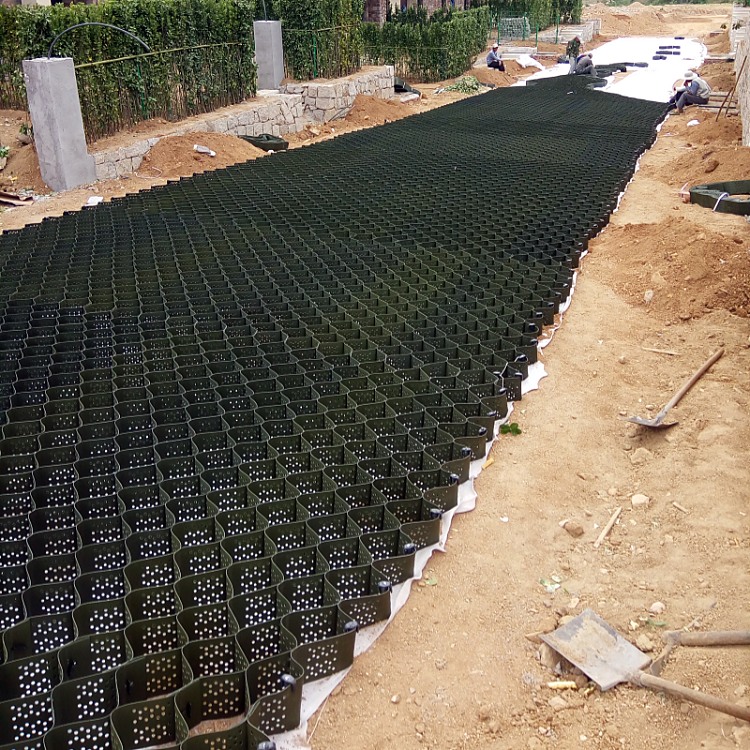

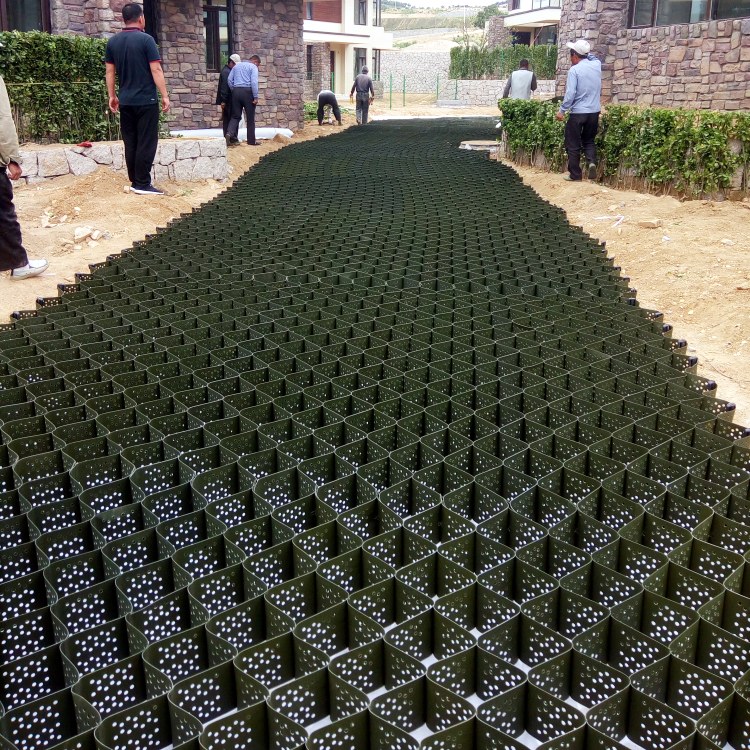

Driveway gravel grid

Introduction

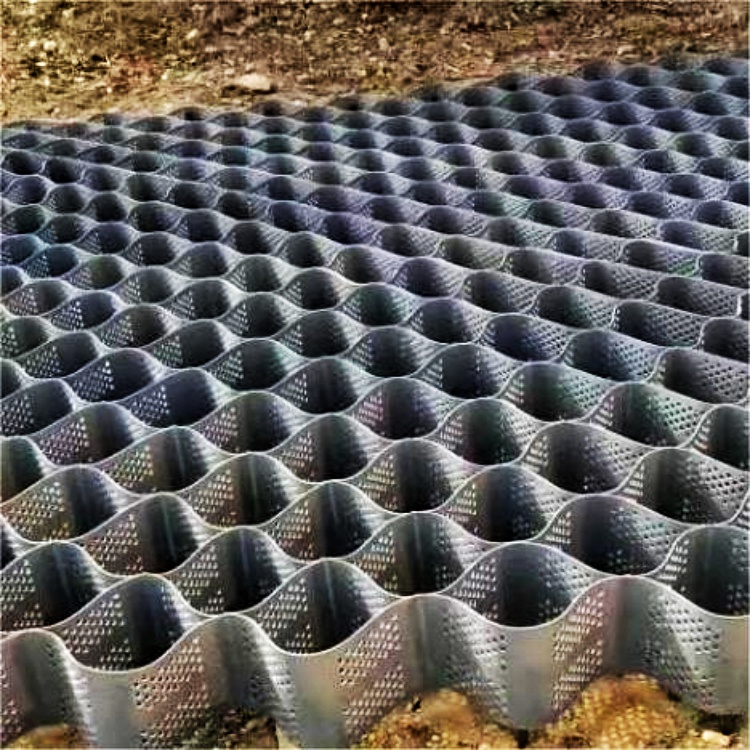

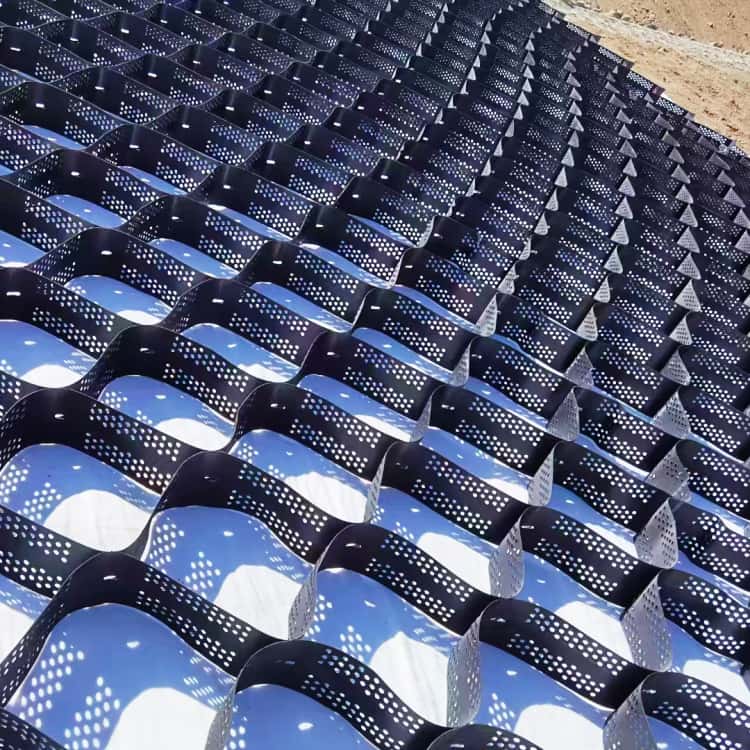

Geocell is a kind of geosynthetics which is welded by ultrasonic with HDPE or Polymer Nanocomposites Alloy strips.It has a honeycomb structure which improves the service life of the driveway.So the geocell for road is also called driveway gravel grid.

When a load acts on the foundation surface of driveway, based on “Terzaghi and Prandtl's theories”, the following occurs under a concentrated load:

- The “active zone”of the foundation compresses and settles under pressure, transferring the load laterally to the **transition zone**, which then transmits it to the “passive zone”. Consequently, the passive zone is prone to deformation and heaving under force.

However, under concentrated loading, while the active zone of road still transfers external forces to the transition zone, the lateral movement of the passive and transition zones is restrained by:

1. “Confinement from the geocell sidewalls”;

2. “Reactive forces between adjacent cells”;

3. “Frictional resistance between the cell walls and fill material”.

This restraint enhances the road subgrade's bearing capacity. Tests show that, due to mutual confinement between cells, the **cohesion of medium-density sand can increase by over 30 times**. This demonstrates that improving the overall shear resistance of the subgrade material or restricting movement in the active, transition, and passive zones effectively boosts foundation bearing capacity—“the fundamental principle of honeycomb geocells”.

Feature

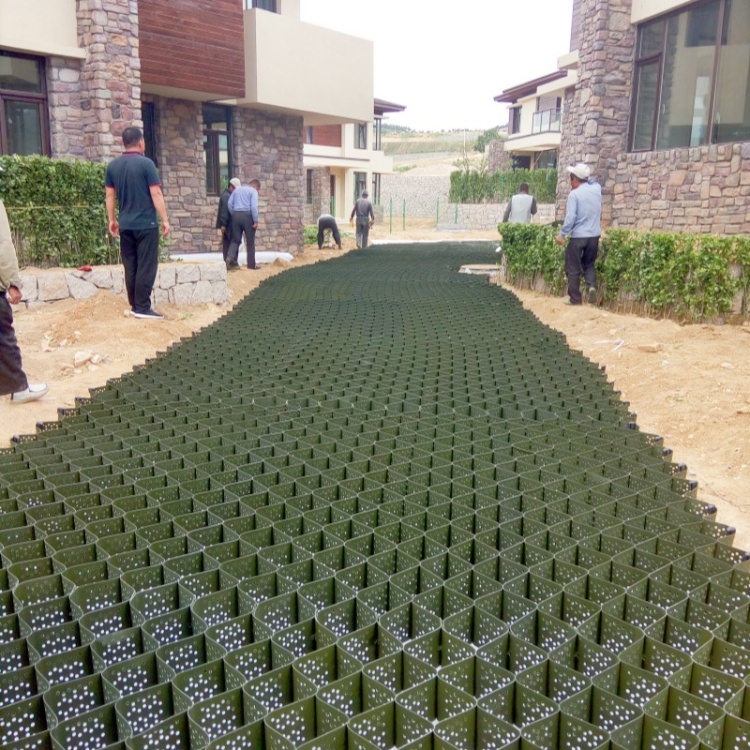

1.Foundation stability control scheme for approach road, transportation site and storage site as ground grid.

2. Treatment scheme for ramps and shallow water passages

3. Rail base-to-ballast structure expansion foundation and pipeline protection treatment scheme

4. Eco-Aesthetic : Can be filled with suitable materials and planted with various vegetation for an attractive, landscape-friendly appearance.

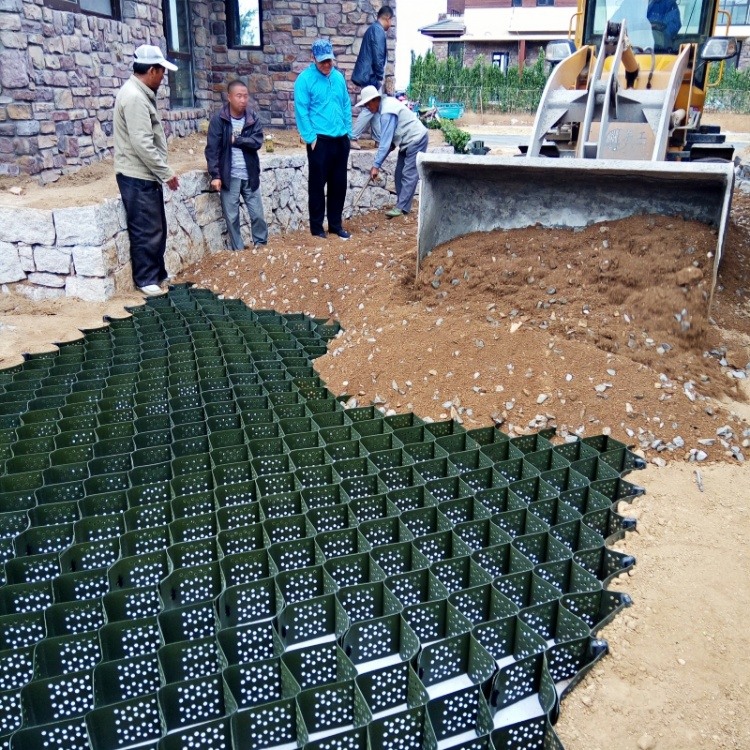

5. Labor-Saving : Requires no specialized machinery, features simple construction techniques, and ensures high project efficiency.

6. Durability : Lightweight yet wear-resistant, with stable chemical properties, excellent aging resistance, and strong acid/alkali corrosion resistance, ensuring long-term performance.

7. Customizability : The height, length, width, weld spacing, and color of the honeycomb geocell can be adjusted according to project requirements.

Application

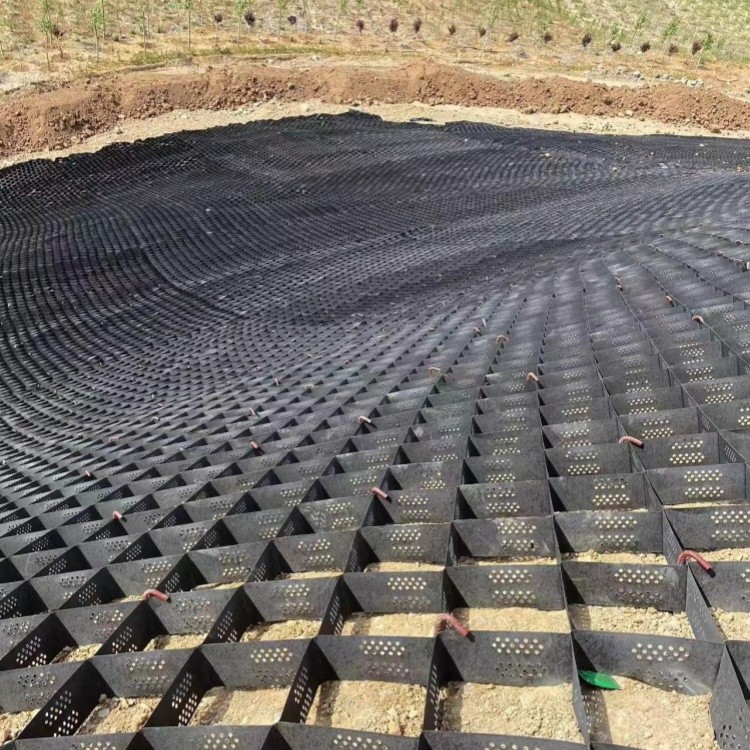

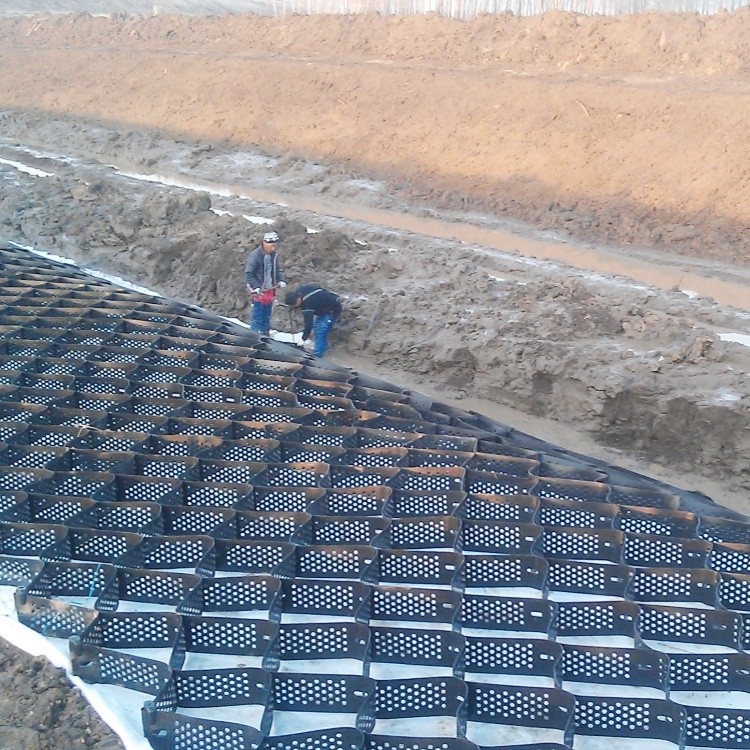

1. Ecological protection and treatment scheme for the upstream and backslope of the reservoir

2.Protection and treatment scheme for small and medium-sized rivers with seasonal and high flow rates

3.Embankment treatment scheme for lakes and fish ponds with relatively static water bodies

4. Urban river ecological embankment construction scheme

5.Overall construction scheme of agricultural irrigation canals and branch canals

6.Anti-erosion lining treatment scheme for flood discharge ditches and erosion ditches

7. Ecological embankment construction scheme based on cement embankment

8.Black and smelly river ecological natural restoration and treatment scheme

9.Ecological treatment scheme for steep slope

10. Multi-layer canal system management scheme

Parameter

Shippment

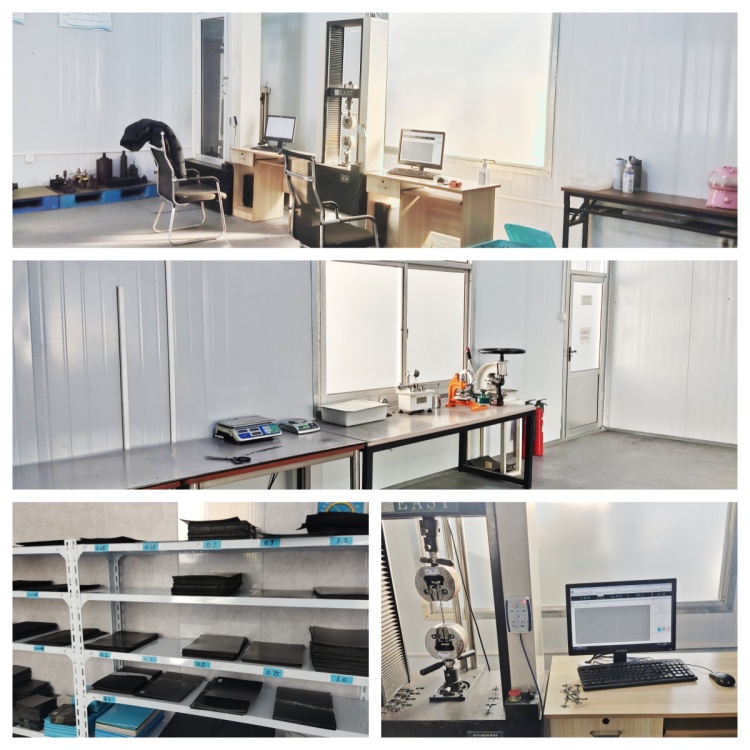

Test machine

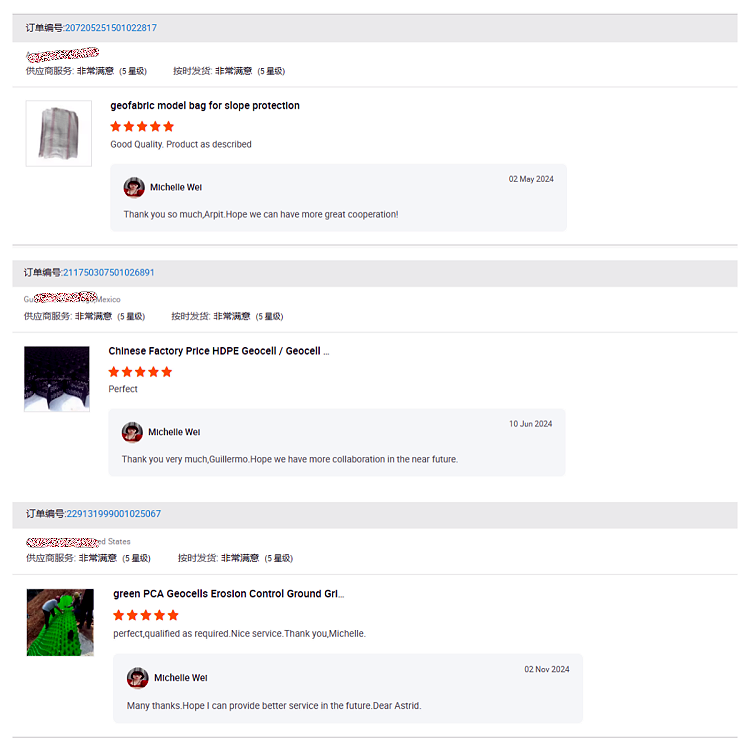

Customer Reviews
