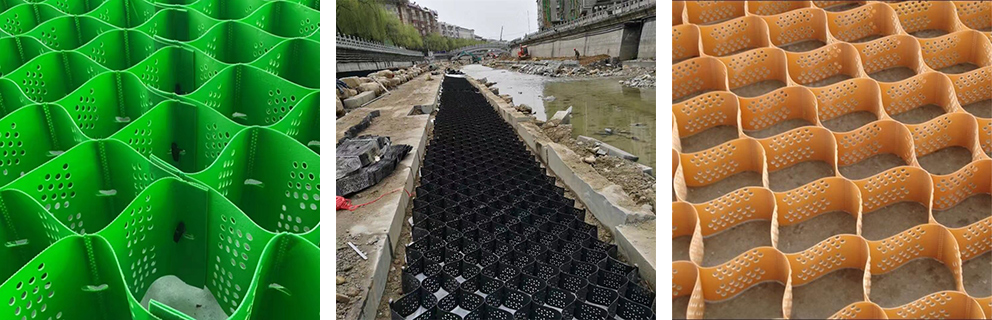

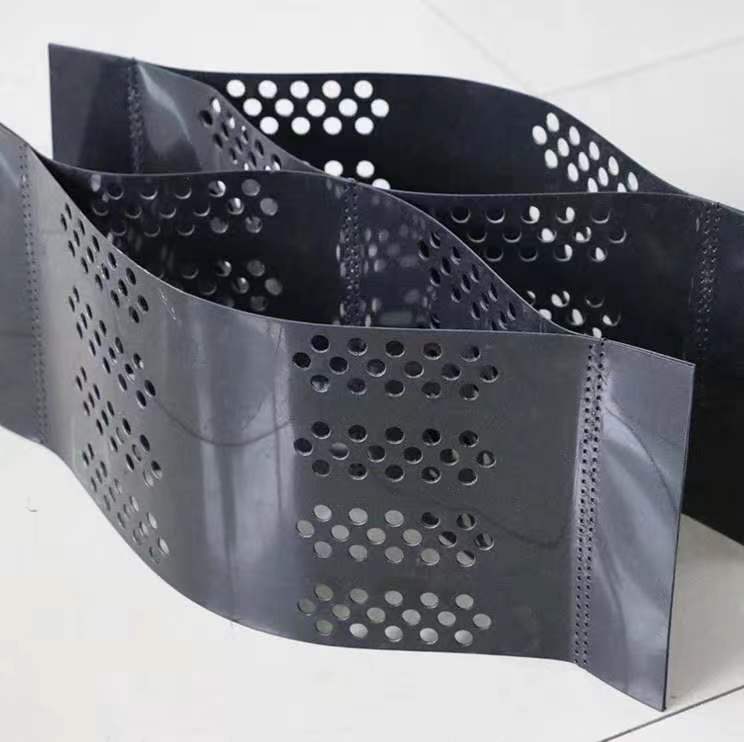

HDPE Geocell
Geocell is the ideal solution for the most demanding load support and erosion control applications. Green faced retaining walls can be constructed using geocell, forming a more aesthetically sympathetic solution for retaining applications. Extremely versatile and adaptable, geocell provides effective and economical solutions in a wide variety of applications including ground stabilization, slope protection, retaining walls and channels.
Introduction:
Geocell is a three-dimensional cellular confinement system manufactured from high-density polyethylene (HDPE) strips that are ultrasonically welded together to create a strong, lightweight expandable panel.
Initially developed through the US Army Corps of Engineers to assemble unpaved roads over susceptible ground, it dramatically improves the overall performance of infill substances throughout a vary of applications.

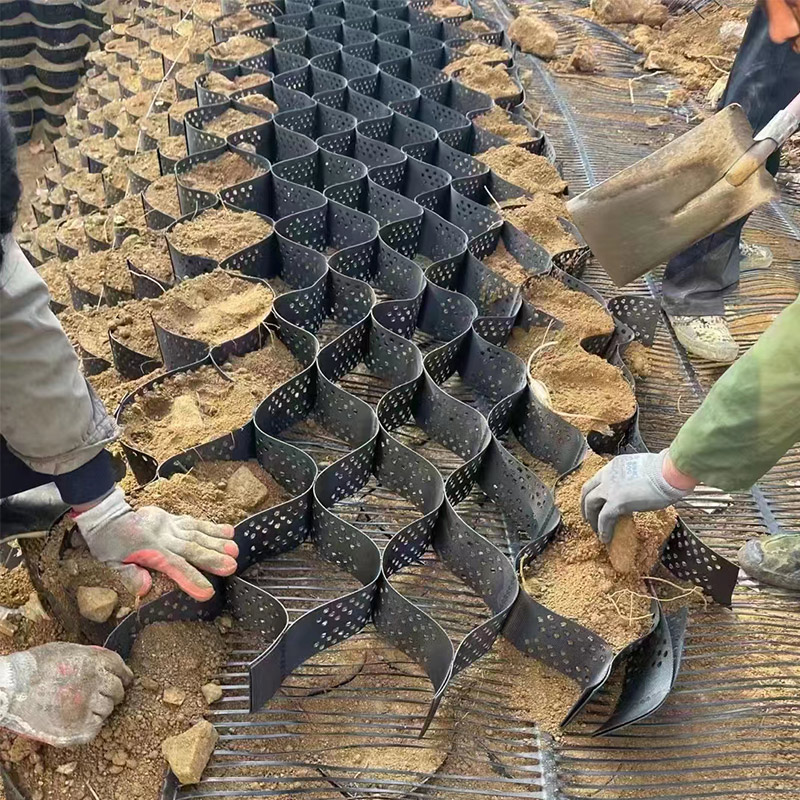

Geocell confines and reinforces vegetation on steep slopes via growing the soils herbal resistance to erosion and protects the root area layer all through germination.

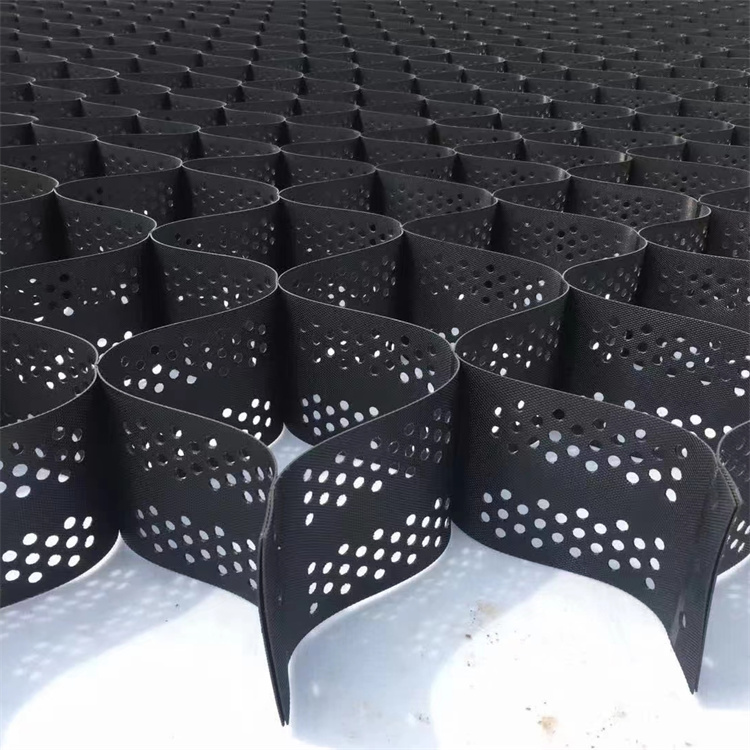

Its' special hoop power and interconnecting telephone partitions structure a long lasting composite mattress that can be stuffed with frequent materials. The perforated telephone partitions motivate lateral drainage and frictional interlock, growing the structural overall performance of the system
Parameter:
Item | Property | Units | Value | |
Material | Polymer Density | g/cm3 | 0.94 | |
Carbon Black Content | % | 2.0 | ||
Oxidative Induction Time | Min | 20 | ||
Low Temperature Brittleness | ℃ | ≤-50 | ||
Vicat softening temperature | ℃ | ≥112 | ||
Environment Stress Crack Resistance F50 | hours | ≥800 | ||
Strip Properties | Sheet Thickness | mm | 1.1/1.2/1.5 | |
Sheet Tensile Strength | Mpa | ≥20 | ||
Sheet Surface | / | Smooth/Textured | ||
Color | / | Black/Yellow/Green | ||
Cell Depth | mm | 50/75/100/150/200/250 | ||
Seam Properties | Seam Peel Strength | N/10cm | ≥1000 |
Feature:
➢Light weight, wear-resistant, chemical stability, light oxidation aging, anti-acid/alkali corrosion, applied to different
geological conditions, such as saline soil, desert, etc.
➢ Wide temperature range, excessive tensile strength, accurate tension and toughness, desirable load potential and anti-erosion ability.
➢ Size is exceptionally stable, exchange the peak and welding distance can meet the desires of specific projects.
➢ Retractile, effortless to transport.
➢ Easy to use, can use the nearby substances and attain speedy construction, minimize development costs.

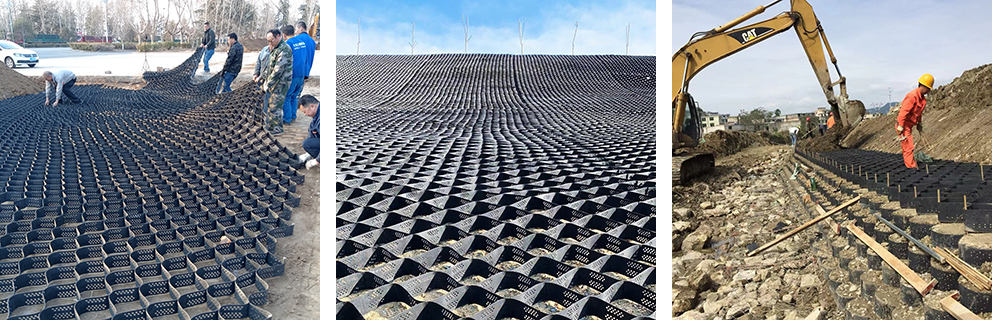

Application:

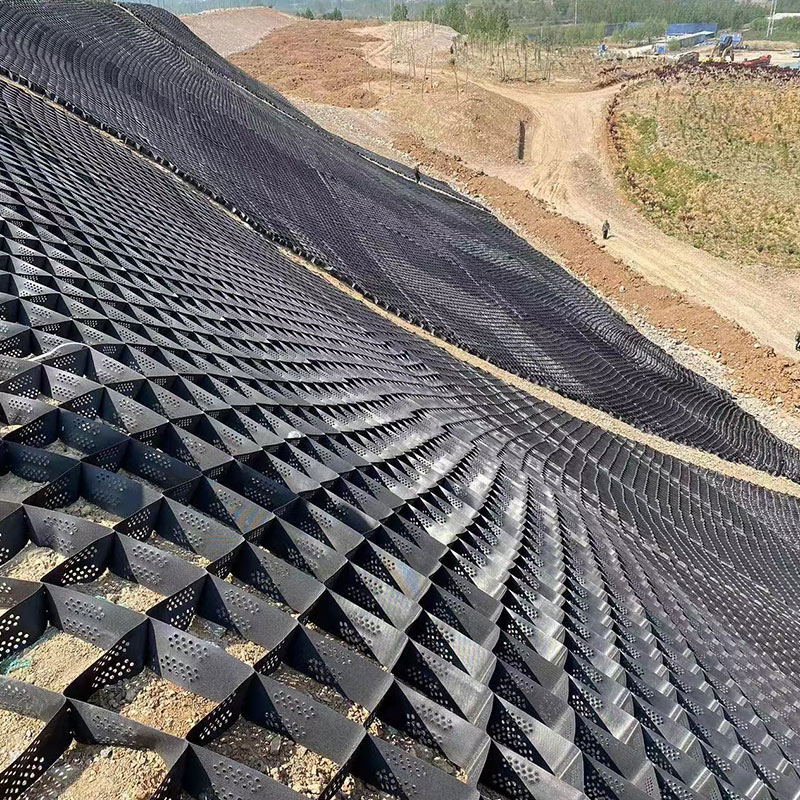

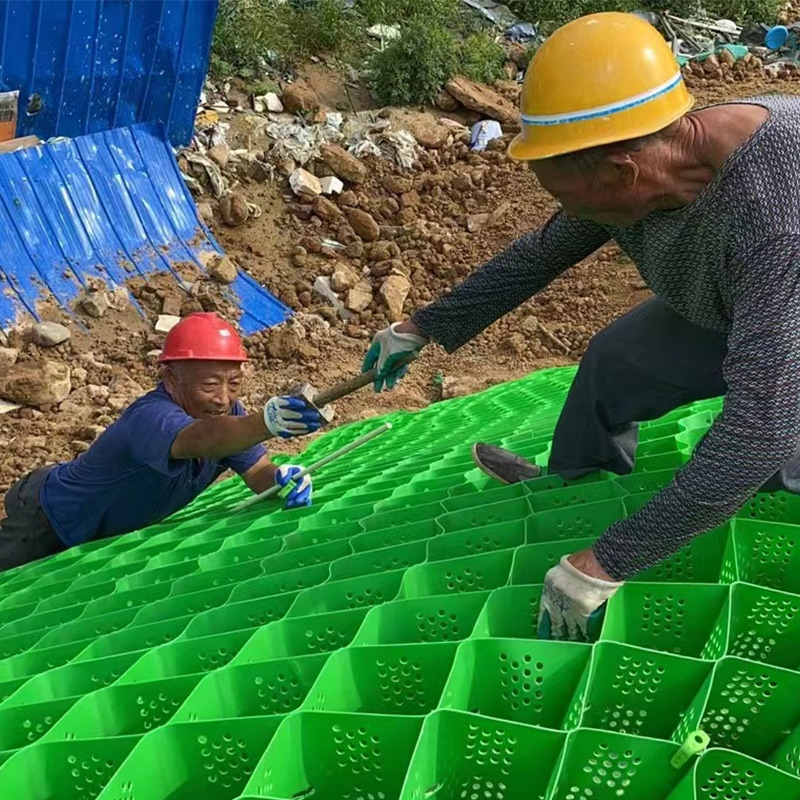

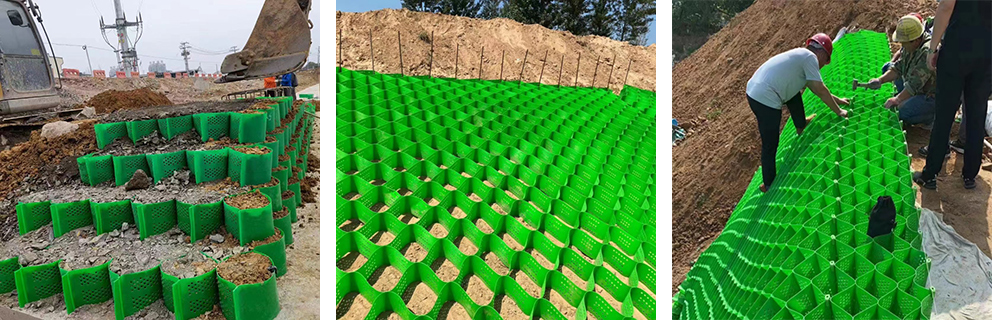

• Slopes • Channels • Vegetative soil crammed channel • Aggregate crammed channel • Concrete crammed channel • Embankments • Retaining partitions • River banks
