3D Erosion Control Mat

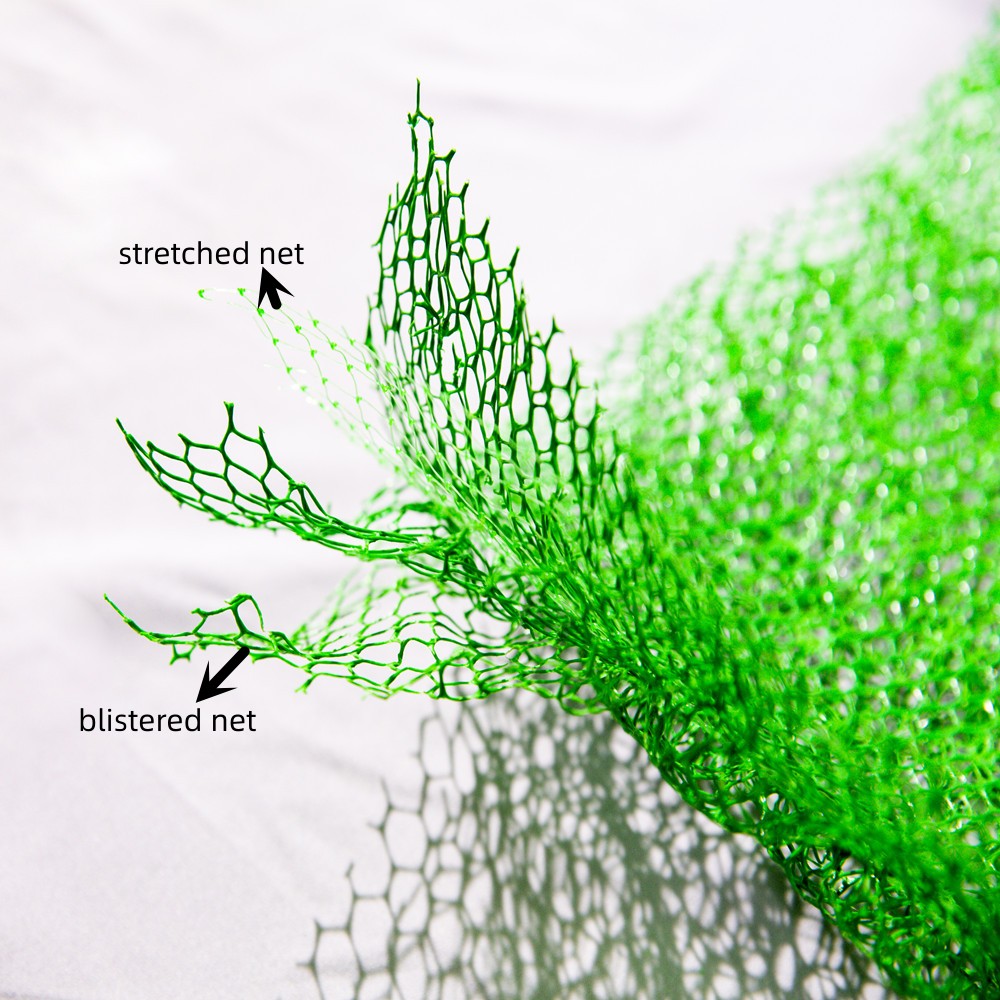

3D erosion control mat is a new typed seed planting material with 3D structure, which can protect the ground surface being corroded before the turf is growing up, and fix the seeds.
The compound protection layer formed after the grass grows up can endure washing by high level and high speed water. It can be a substitute of the concrete, bitumen, stone etc to be the slope protection material. It has mainly been used in highway, railway, river way, embankment, hillside etc.
Introduction:
Three-dimensional geomat refers to a new technology that uses active plants and combined with engineering materials such as geosynthetics to build a protection system with its own growth ability on the slope surface, and strengthens the slope through the growth of plants.
Parameters:
Item | EM2 | EM3 | EM4 | EM5 | |
Unit Weight≥(g/ m 2 ) | 220 | 260 | 350 | 430 | |
Thickness≥(mm) | 10 | 12 | 14 | 16 | |
Tensile Strength≥(kN/m) | 0.80 | 1.4 | 2.0 | 3.2 | |
Width(m) | 2.0 | 2.0 | 2.0 | 2.0 | |
Length(m) | 50 | 50 | 30 | ||
Feature:
(1)Loose and flexible
(2)A layer of strong green composite protective cover.
Application:
(1)Before the grass' growing up ,it can protect the land surface from wind erosion
(2)It can keep seed uniform and firm on the slope casting surface from the wind and rain rushing away

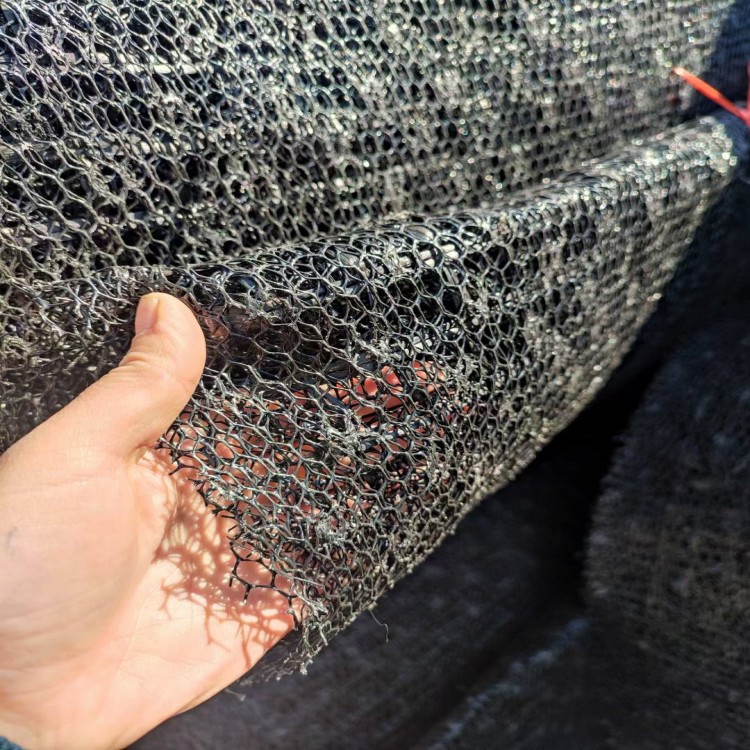

(3)Black nets mat can absorb a lot of heat, increase humidity, promote seed germination,and extend the plant growth
(4)The rough surface keeps the wind, water flow in the nets mat surface,and then produces countless eddy current,to weaken generating function
(5)Plants grow up and form compound protection layer.the layer can withstand high water level, the flow velocity flushing

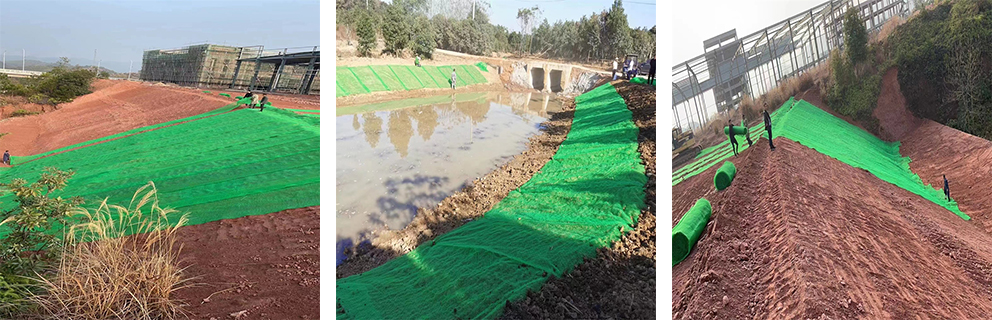

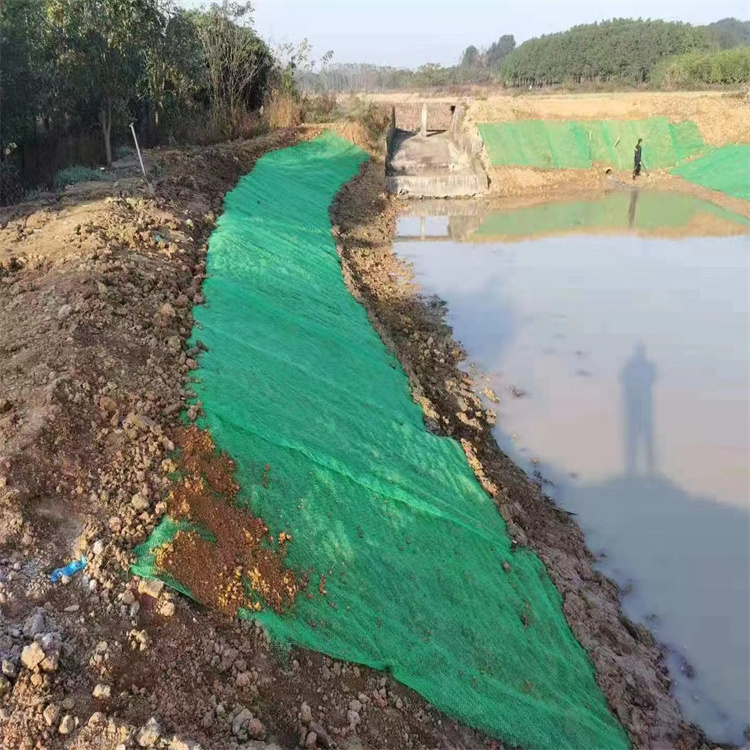

(6)It can replace concrete, asphalt, stone as permanent slope protection materials,and used for highway, railway, river, dams,hillside slope protection, et
Production Line:
Test Machine:

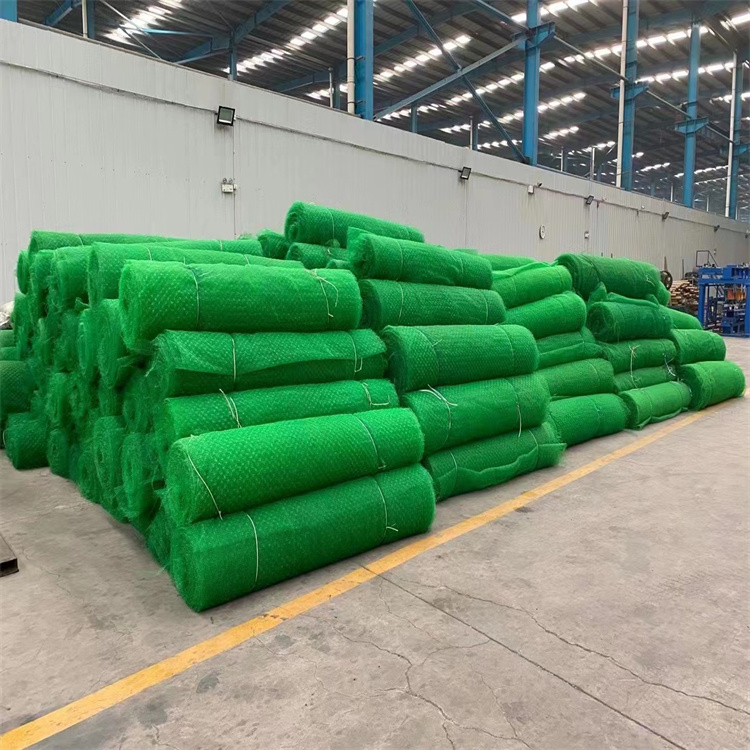

Warehouse:
Shippment:
Customer Visit:
